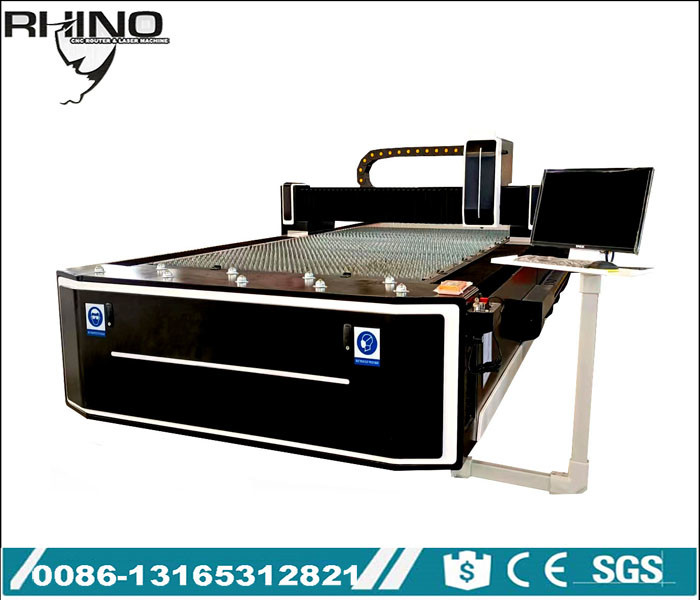

Aluminium Fiber Optic Laser Cutting Machine 2000W RF-1530-2000 for
Metal Cutting
Suitable materials
Application Materials: Fiber Laser Cutting Equipment with IPG2000W is suitable for metal
cutting like Aluminum 1mm-20mm,Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy
Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron,
Galvanized Sheet, Copper Sheet, Brass Sheet, Bronze Plate, Gold
Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate,
Tubes and Pipes, etc.
Application Industries
Fiber Laser Cutting Machines are widely used in manufacture
Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters,
Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals
Components and Parts, Ironware, Chassis, Racks & Cabinets
Processing, Metal crafts, metal art ware, elevator panel cutting,
hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates,
etc.
Features
1. Laser module protection
2. The laser module have warning sign to introduce the laser out
avoid harm from direct laser；
3. The cover have ground connection to avoid hurt from leakage.
4. The operator need to wear suitable laser protection glasses
throughout the operation；
5. Low maintenance:Fiber line transmission, no adjustment of
optical path;
6. Easy operations:fiber line transmission no need reflect
lens,save maintenance cost;
7. Super flexible optical effects:Compact design,easy to flexible
manufacture requirements;
The process of cutting aluminum with a fiber laser cutting machine
steps:
1. Preparing the machine: The fiber optic cutting machine is first
prepared for cutting aluminum by adjusting the laser settings and
ensuring that the machine is clean and free from any debris.
2. Loading the aluminum: The aluminum sheet or plate to be cut is
loaded onto the machine's cutting bed, which is typically made of a
honeycomb material that provides support during the cutting
process.
3. Setting the parameters: The operator sets the cutting
parameters, such as the cutting speed, power, and focus, based on
the thickness of the aluminum and the desired cut quality.
4. Starting the cutting process: Once the parameters are set, the
operator starts the cutting process by activating the laser. The
laser beam cuts through the aluminum sheet in a precise and
controlled manner, guided by the machine's computer software.
5. Completing the cut: Once the cutting process is complete, the
operator unloads the cut aluminum sheet from the machine's cutting
bed. The edges of the cut are smooth and clean, with minimal heat
affected zone (HAZ) and no burrs.
Overall, the fiber optic cutting machine provides a highly accurate
and efficient method for cutting aluminum, with the ability to
produce complex shapes and high-quality cuts in a variety of
thicknesses.
2000W Main Configuration Instructions
| No. | Name | Quantity | Origin and manufacturer name |
| 1 | Lasers |
| (1) | Fiber laser | 1 set | |
| (2) | Laser Power |
| 2 | The optical path and the cutting head |
| Special laser cutting head | 1 set | |
| 3. | Host Machine |
| (1) | Machine bed | 1 set | Homegrown/Jinan Iron and Steel |
| (2) | Gear rack | 1 set | From Taiwan |
| (3) | Servo motor and drive | 3 set | Imported from Japan |
| 4 | CNC and software systems |
| CNC systems(With control software) | 1 set | Cypcut control system |
| 5 | Standard accessories |
| Water cooling | 1 set | TENGFEI |
RF-1530-2000W Main Parameters
| Model | RF-1530-2000 |
| Laser type | Fiber laser |
| Laser working medium | Fiber |
| Laser wavelength | 1070 nm |
| Rated output power | 2000 W |
| Beam quality | ＜0.373mrad |
| Effective cutting range | 1500×3000(mm) |
| Table axial positioning accuracy | ≤±0.03mm/m |
| Repeat positioning accuracy table | ≤±0.02mm/m |
| Cutting speed | ≤30m/min |
| Maximum table load | 1600KG |
| Power Ratings | Three-phase AC 380V 50Hz |
| Equipment electric power | 10-20KW |
| Total power protection class | IP54 |
Processing capacity Description
| Material | Thickness | Auxiliary gas |
| Carbon Steel | ＜20mm | Oxygen
|
| Stainless Steel | ＜18mm | Oxygen
|
| Aluminum | ＜12mm | Nitrogen |
Part of the process parameters
| Material | Thicknes(MM) | Gas | Maximum cutting speed |
| Carbon Steel | 1 | Oxygen | 3m/min |
| 2 | Oxygen | 1.2m/min |
| 5 | Oxygen | 0.5m/min |
| Stainless Steel | 1 | Oxygen | 3m/min |
| 3 | Oxygen | 0.5m/min |
| Aluminum | 1 | Oxygen | 2m/min |
| 2 | Oxygen | 0.5m/min |
RF-1530-2000 Fiber laser cutting machine samples
