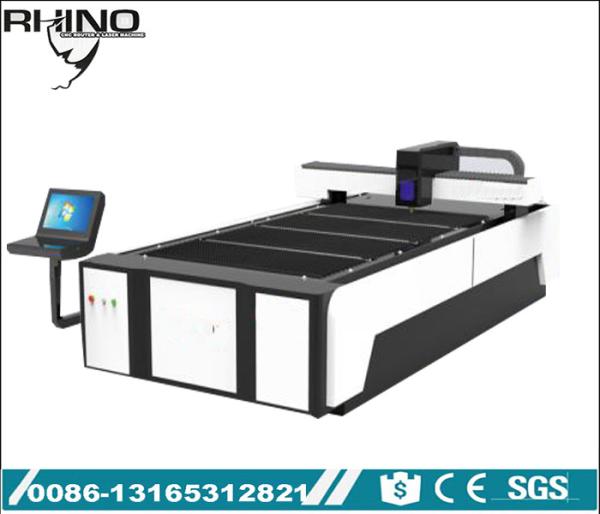

1000w Raycus R-1530 fiber laser cutting machine for steel carbon
steel aluminium
Suitable materials and industry application
--- Widely used in sheet metal processing, aviation, aerospace,
electronics, electrical appliances, automobile, food machinery,
textile machinery, engineering machinery, precision parts, ships,
metallurgy equipment, elevators, household appliances, craft gifts,
tool processing, decoration, advertising, and other fields.
--- Professional used to cut thin sheet metal, in a variety of high
quality 0.5- 6 mm carbon steel sheet cutting, also cut stainless
steel plate, aluminum alloy plate, galvanized sheet, electrolytic
plate, silicon steel, titanium alloy, aluminum zinc plate and other
metal materials.
Features
1. Choose the world's largest optical fiber laser manufacturers,
1000w fiber laser.
2. Laser module protection system
3. The laser module have warning sign to introduce the laser out
avoid harm from direct laser；
4. The cover have ground connection to avoid hurt from leakage.
5. The operator need to wear suitable laser protection glasses
throughout the operation；
6. Low maintenance:Fiber line transmission, no adjustment of
optical path;
7. Easy operations:fiber line transmission no need reflect
lens,save maintenance cost;
8. Super flexible optical effects:Compact design,easy to flexible
manufacture requirements;
500W Main Configuration Instructions
| No. | Name | Quantity | Origin and manufacturer name |
| 1 | Lasers |
| (1) | Fiber laser | 1 set | |
| (2) | Laser Power |
| 2 | The optical path and the cutting head |
| Special laser cutting head | 1 set | |
| 3. | Host Machine |
| (1) | Machine bed | 1 set | Homegrown/Jinan Iron and Steel |
| (2) | Gear rack | 1 set | From Taiwan |
| (3) | Servo motor and drive | 3 set | Imported from Japan |
| 4 | CNC and software systems |
| CNC systems(With control software) | 1 set | Cypcut control system |
| 5 | Standard accessories |
| Water cooling | 1 set | TENGFEI |
1000W Main Parameters
| Model | RF-1530-1000 |
| Laser type | Fiber laser |
| Laser working medium | Fiber |
| Laser wavelength | 1070 nm |
| Rated output power | 1000 W |
| Beam quality | ＜0.373mrad |
| Effective cutting range | 2500×1300(mm) |
| Table axial positioning accuracy | ≤±0.03mm/m |
| Repeat positioning accuracy table | ≤±0.02mm/m |
| Cutting speed | ≤30m/min |
| Maximum table load | 1600KG |
| Power Ratings | Three-phase AC 380V 50Hz |
| Equipment electric power | 10-20KW |
| Total power protection class | IP54 |
Processing capacity Description
| Material | Thickness | Auxiliary gas |
| Carbon Steel | ＜8mm | Oxygen
|
| Stainless Steel | ＜6mm | Oxygen
|
| Aluminum | ＜3mm | Nitrogen |
Part of the process parameters
| Material | Thicknes(MM) | Gas | Maximum cutting speed |
| Carbon Steel | 1 | Oxygen | 3m/min |
| 2 | Oxygen | 1.2m/min |
| 5 | Oxygen | 0.5m/min |
| Stainless Steel | 1 | Oxygen | 3m/min |
| 3 | Oxygen | 0.5m/min |
| Aluminum | 1 | Oxygen | 2m/min |
| 2 | Oxygen | 0.5m/min |
RF-1530-1000 Fiber laser cutting machine samples
