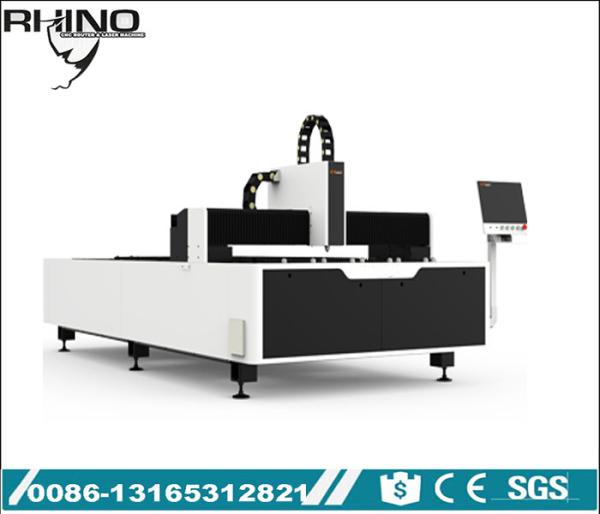

New style economic 1500w fiber laser cutting machine for steel carbon steel aluminium RF-1530-1500
Suitable materials and industry application
1.Fiber optic cutting machines are widely used in various industries.
2.One of the main applications is in the field of metal fabrication, where the machines are used to cut and shape sheet metal, stainless steel, aluminum, and other metals with precision and accuracy.
3.In the automotive industry, fiber optic laser cutting machines are used for cutting and shaping various parts, including body panels, engine components, suspension systems, and more.
4.They are also used in the aerospace industry to cut and shape parts for aircraft and spacecraft, including fuselage panels, wings, and engine components.
5.Fiber optic cutting machines are also used in the construction industry for cutting and shaping materials such as concrete, stone, and tile.
6.They are used for precision cutting of building materials for construction projects, including walls, floors, and countertops. In addition,
7.Fiber optic laser cutting machines are used in the electronics industry for precise cutting of circuit boards and other electronic components.
8.Fiber laser cutting machine RF-1530-1500W can also be used in the medical industry for cutting and shaping surgical instruments and implants.
Overall, fiber optic cutting machines are versatile and widely used in many industries where precision cutting and shaping of various materials is necessary.
Features OF Fiber laser cutting machine:
1. High precision cutting: the laser beam is focused into a very small spot, so the cutting precision is higher than other cutting methods.
2. High speed cutting: the cutting speed can reach up to several meters per minute, which greatly improves the production efficiency.
3. Non-contact cutting: the laser beam is a non-contact cutting tool, which means that there is no mechanical pressure on the workpiece, thus avoiding deformation of the workpiece.
4. Flexible processing: the laser cutting machine can process a variety of materials, including metal, non-metal, composite materials and so on.
5. Low maintenance cost: the fiber laser cutting machine has a long service life and requires less maintenance, which greatly reduces the operating cost.
6. Energy-saving and environmental protection: the fiber laser cutting machine has high electro-optical conversion efficiency and low power consumption, which is more energy-saving and environmentally friendly than traditional cutting methods.
RF-1530-1500W main Configuration instructions:
Technical specifications
| optical parameter | Unit | 1500W |
| operational mode | CW,QCW |
| wavelength of the center radiation | nm | 1070-1080 |
| standard power output | W | 1000 |
| optical quality | Mm*mrad | 4 |
| SPD speed | kHz | 5 |
| Optical fiber diameter | μｍ | ≥50 |
| output power stability (long-term) | % | ±2 |
| power supply | VAC | 400-460 |
| Power consumption (including supporting annex) | kW | 2 |
1000W Main Parameters
| Model | RF-1530-1500 |
| Laser type | Fiber laser |
| Laser working medium | Fiber |
| Laser wavelength | 1070 nm |
| Rated output power | 1000 W |
| Beam quality | ＜0.373mrad |
| Effective cutting range | 2500×1300(mm) |
| Table axial positioning accuracy | ≤±0.03mm/m |
| Repeat positioning accuracy table | ≤±0.02mm/m |
| Cutting speed | ≤30m/min |
| Maximum table load | 1600KG |
| Power Ratings | Three-phase AC 380V 50Hz |
| Equipment electric power | 10-20KW |
| Total power protection class | IP54 |
Processing capacity Description
| Material | Thickness | Auxiliary gas |
| Carbon Steel | ＜12mm | Oxygen
|
| Stainless Steel | ＜8mm | Oxygen
|
| Aluminum | ＜4mm | Nitrogen |
Part of the process parameters
| Material | Thicknes(MM) | Gas | Maximum cutting speed |
| Carbon Steel | 1 | Oxygen | 3m/min |
| 2 | Oxygen | 1.2m/min |
| 5 | Oxygen | 0.5m/min |
| Stainless Steel | 1 | Oxygen | 3m/min |
| 3 | Oxygen | 0.5m/min |
| Aluminum | 1 | Oxygen | 2m/min |
| 2 | Oxygen | 0.5m/min |

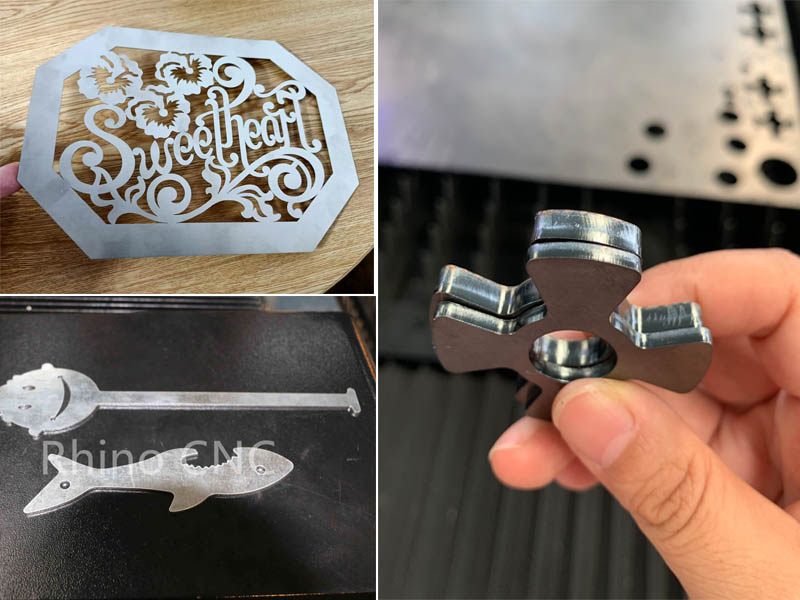

RF-1530-1500 Fiber laser cutting machine samples
