    Mold Making 4 Axis ATC CNC Router Machine With Left Right Tilting Spindle 90 Degree

    Ask Lasest Price
    Brand Name : Rhino
    Model Number : RSKM25-H
    Certification : CE/ISO/FDA
    Price : 2000-20000usd/set
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 1000 sets per month
    Delivery Time : 10-14 working days
    • Product Details
    • Company Profile

    Mold Making 4 Axis ATC CNC Router Machine With Left Right Tilting Spindle 90 Degree

    4 axis ATC CNC Router machine with spindle tilting left right 90 degree for model making


    Feathers:

    1. Adopt High strength welded bed with tempering aging treatment, Five sides milling CNC machining center processing to make sure guarantees rigidity and precision of the machine

    2. Chinese HQD spindle or Italian HSD ATC air cooling spindle, ensure the cutting effect, long using life with less maintain.

    3. Japan Shimpo reducer and Yaskawa servo system to make sure speed and stability.

    YASKAWA servo motors runs smoothly ,no vibration phenomenon even in low speed and has overload ability

    4. Have ATC system, multi tools for choice, meeting all kinds of engraving and cutting needs.

    Like 2D/3D all kinds of designs no any problem

    5. There have 6 to 20 pieces automatic tool changers for your option to meet all your requirements in job

    6. It is suitable for carving and making of wooden doors and furniture also machines can sculpt all kinds of patterns.

    7. With oil injection system, the drive part of the machine can be effectively lubricated.


    Rhino company advantages:


    1. Average monthly output and sales more than 15 sets 4axis ATC cnc machines

    With more than 6 years experience for service more than 100 countries.

    2. Adopt top level accessories in the industry, which are powerful, easy to operate and highly humanized.

    3. Provide a complete set of solutions: including modeling design, programming, tooling design, tool selection, processing data, machine training.


    Description & Specifications:

    X Working Area2000mm
    Y Working Area3000mm
    Z Working Area600mm
    Table size2000x3000mm
    Traveling Positioning Accuracy±0.02mm
    Repositioning Positioning Accuracy±0.02mm
    Table SurfaceBy vacuum
    X,Y ,Z StructureXY gear wheel, Z ball screw
    Max. Rapid Travel Rate90000mm/min
    Max. Working Speed30000mm/min
    SpindleItaly 9.0Kw HSD/HQD ATC spindle
    Spindle Speed0-18000r/min
    MotorYaskawa Japan Servo Motor
    DriverYaskawa Japan Servo Motor
    CommandG-code*.u00*.mmg*.plt
    Working voltageAC 220V/380V
    Control SystemTAIWAN Syntec Control System
    Guide rail30 Square rail (TAIWAN TBI/HIWIN )
    N.W./G.W.2000KGS
    Accessories (for free)

    1 Tool Box 1

    2 Woodworking Knife

    All type 12 Different size

    3 collet 3.17, 4, 6, 12.7 4

    4 Allen wrench M6 1

    5 Open-end wrench 27-30 45-52 2

    6 Certificate, CE

    7 Adjustment screw 4

    8 Clamps 8

    9 Spanner, 3,4,5,6mm, 4

    10 Fuse core 2

    12 Software CD 1


    Applications:

    • Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
    • Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
    • Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
    • Relief sculpture and 3D engraving.
    • Cylindrical object.

    RSKM25-H details

    Whole structure heavy duty make sure working more stable and higher precision


    Original Italy HSD 9KW ATC spindle with rpm 0-18000 good quality 0 complain


    Mold Making 4 Axis ATC CNC Router Machine With Left Right Tilting Spindle 90 Degree

    Vacuum table 12 zones with T-SLOT combination more easier to operate


    Mold Making 4 Axis ATC CNC Router Machine With Left Right Tilting Spindle 90 Degree

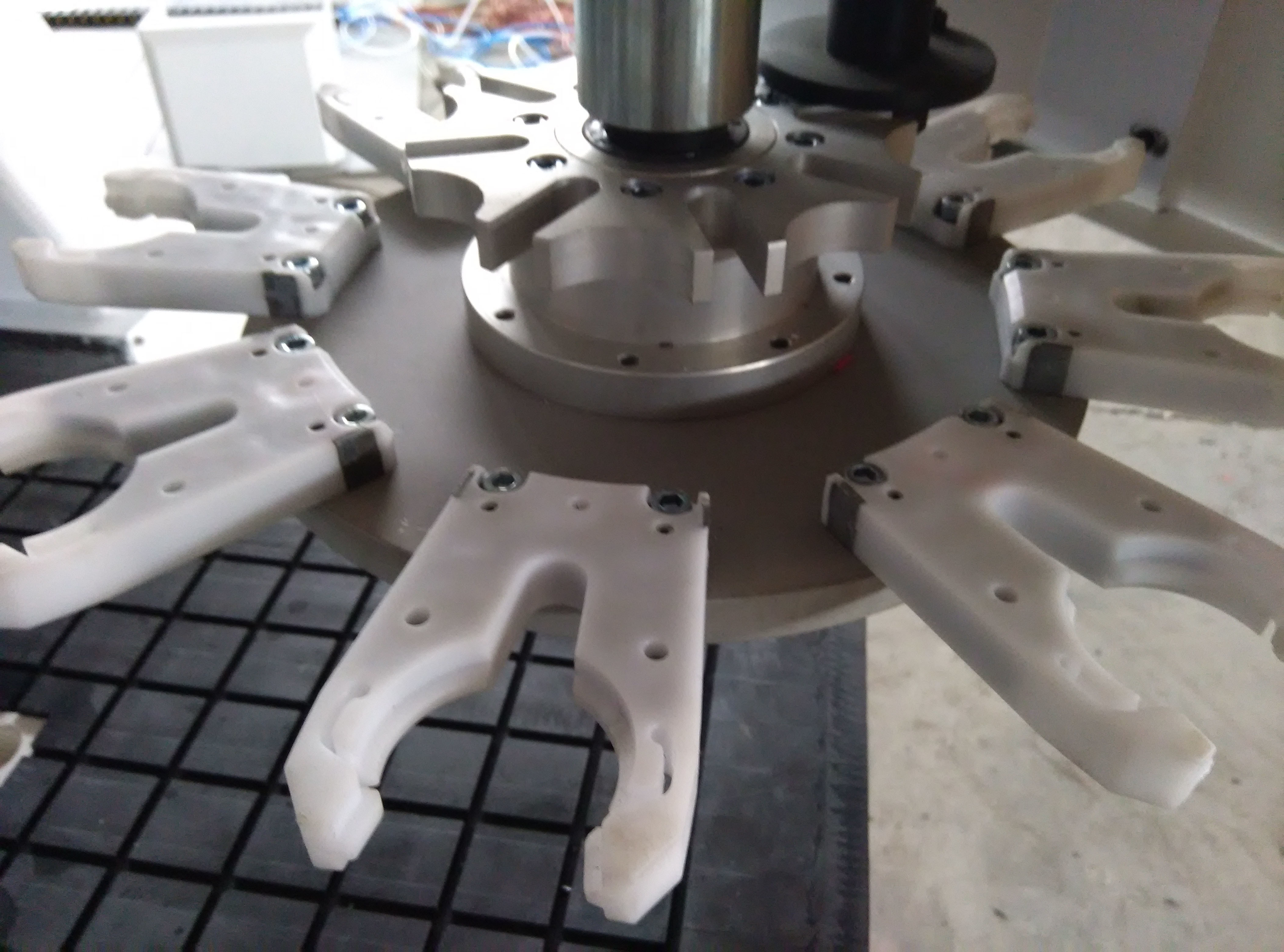

    Good quality disc tool changer 12 pieces with ISO 30 chuck not easy to broken12pieces together with machine when delivery


    Mold Making 4 Axis ATC CNC Router Machine With Left Right Tilting Spindle 90 Degree

    Also we have linear tool changer for your option


    Mold Making 4 Axis ATC CNC Router Machine With Left Right Tilting Spindle 90 Degree
