Cast iron table 4 axis cnc milling machine Spindle rotate left
right 90 degree for aluminium
Advantages
1. Rotary spindle.
Swing +-90 degree, very suitable for carving 3d wood sculpture or
wooden toy or car plane moulds;
2. Rotary device design.(for your option)
Specially for cylinder objects, like cylinder wood craft, furniture
chair leg, relief etc;
3. Taiwan SYNTEC control.
Very popular controller system among customers. If you are new in
this field, we can send you videos to learn, simple operation and
easy maintenance;
4. High stable transmission.
We use TAIWAN HIWIN linear guide rail, which can promise smooth
running during working;
5. ATC function (for your option)
Machine is equipped with linear tool changer 12pieces ISO32 chuck
also we can add it max to 20 pieces
6. Heavy cast iron machine table more stable for metal(aluminium,steel) processing
Application
1. Such 0-180degree rotating spindle cnc router can make different
surface carving, arc-surface milling, bending surface machining for
4D jobs,like special shaped arts, bend doors or cabinets, also can
make horizontal milling,cutting and drilling works.
2. Also widely used for :carve and cut on any kind of Foam (EPS) ,
do 2D and 3D dimension processing.
3. Applied in material like Solid wood, MDF, foam, plastic, stone,
aluminium, copper, PVC and other hard and soft materials.
Technical parameters
| Description | Parameter |
| Model | R-12045H |
| Tool magazine | Linear type auto tool changer with 8 tools storage |
| X,Y,Z Working Area | 2000x4500x1000mm |
| Table Size | 2200×4800mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot working table, 6 zones |
| Structure | Industrial class square tube strong structure, heavy duty 8-10mm |
| X, Y Structure | Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail |
| Z Structure | TAIWAN HIWIN Linear Square Rail and TBI Ball Screw |
| Spindle | Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to
+90° |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 850W Japan YASKAWA servo motors and drivers |
| Inverter | 11kw Taiwan DELTA inverter |
| Working Voltage | 380v, 3phase, 60HZ (Option: AC220V/50/60Hz,3PH) |
| Command Language | G Code |
| Operating System | Taiwan SYNTEC 4 axis control System with handle |
| Computer Interface | USB |
| Reducer | Japan Shimpo reducer |
| Vacuum pump | 4KW German becker pump |
| Collet | ISO30 |
| Software | Artcam |
| Lubrication system | Automatic lubrication system |
| Tool sensor | Automatic tool sensor calibration |
| Optional | The rotary device can move for optional, diameter: 200mm, length: 2000mm; Automatic oil sprayer cooling system; 1.5kw new type double pocket dust collector; |
Machine main components

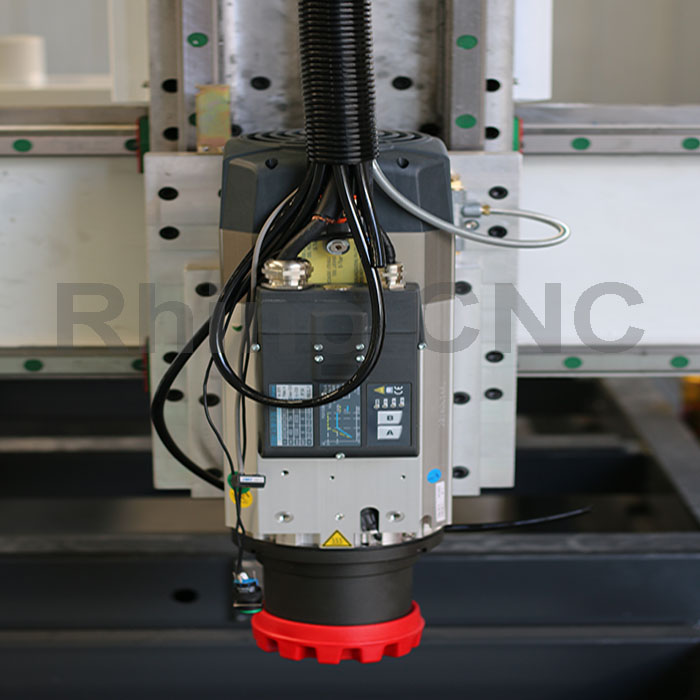

High qualiry 9.0kw ATC spindle with 0-18000rpm/min from Italy also
can rotate 0-180 degree and ATC function
(Cheaper good brand HQD from China also availalbe)

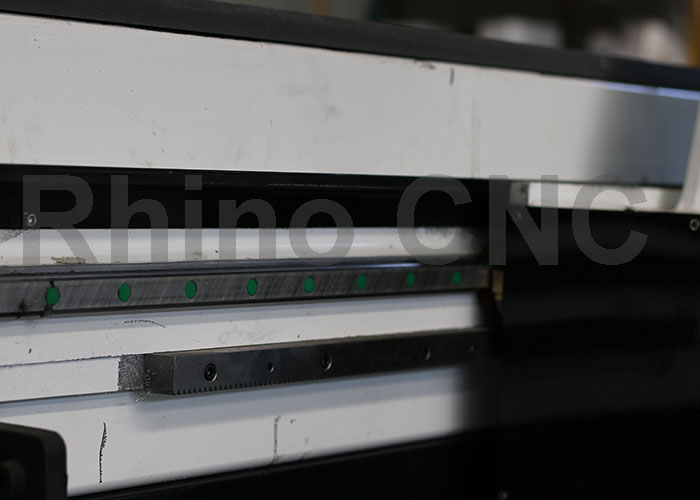

Original HIWIN30 square rail with high precision helical rack
pinion in same level make sure good accurate and more stronger
Linear tool changer 12 pieces with ISO30 chuck, good quality white
color collect (also max 20 pieces we can make)
8 pieces air location jack (4 set in front of table and 4 sets
beside of table) more conveninet to MDF location
DELTA inverter with brake resistance so that spindle can stop
rotateing within 3 seconds and go to change another tool fastly
5 AXIS 11MA Syntec control system with handle easy to learn and
operate
PS: All the working area and specifications can be customized
according to your requests.
